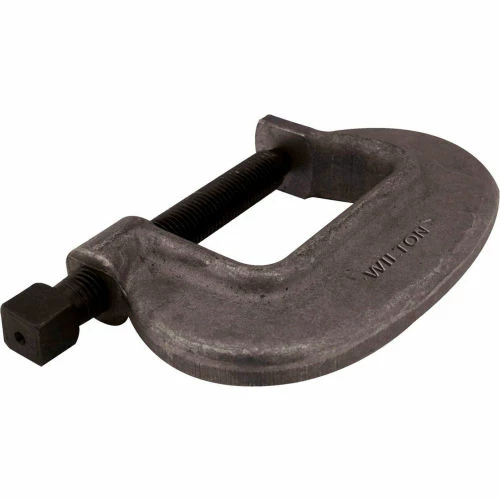

Wilton 14545 Model 3-FC 0-3-3/8" Opening 2-3/8" Throat Depth "O" Series Bridge C-Clamp

Original price was: $122.95.Current price is: $92.99.

SKU: Wilton WBB503332 Categories: C-Clamps, Clamps, Hand Tools Tags: 14545, 16,250, 7161, Bridge, C-Clamp, Tools & Instruments, Wilton

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Wilton® Brute Force™ Bridge C-Clamps are ideal for heavy construction and fabrication. Brute Force C-Clamps boast a drop forged frame, black oxide coating, and clamping pressure ranging up to 40,000 lbs. Spindles are full length, machined from a single piece of square, cold drawn steel tempered and hardened. Square spindle heads stand up to heavy wrench tightening.

Features:

The full closing, extra heavy duty models are designed to stand up to the demands of heavy industrial applications like those encountered in ship building
Hot upset square head on spindle withstands higher torque
Square-head spindle has large diameter rolled thread and hardened point which provides smoother operation and added strength
Black oxide coated spindle resists corrosion
Clamping pressure ranging up to 40,000 lbs.

Throat Depth	2-5/16 in
Length	7.2 in
Brand	Wilton
Nominal Clamp Pressure	16,250
Manufacturers Part Number	14545
Description	C-Clamp
Spindle Assembly Number	7161
Type	Bridge
Width	4.7 in
Min Opening Size	0"
Max Opening Size	3-3/8"
Max Opening Capacity	0 – 3 5/16 " in
Height	1.1 in
Dimensions	1.1×4.7×7.2 in
Net Weight	6.85
Spindle Diameter	7/8 in
Size	0 – 3-3/8 in
Certifications	CSA Certified
