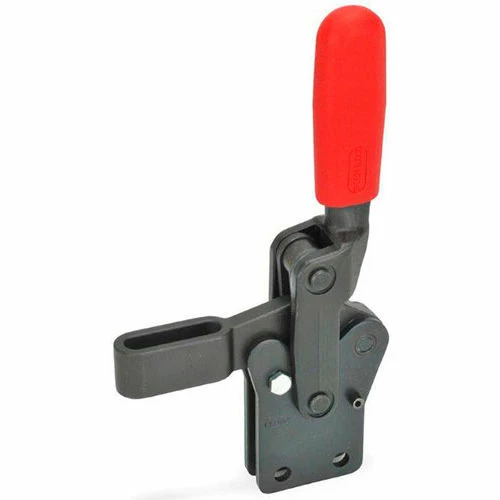

J.W. Winco GN910.1 U-Bar Vertical Acting Toggle Clamp, 910.1-220-B, Size 220, Steel

Original price was: $92.95.Current price is: $65.07.

SKU: J.W. Winco WBB1171975 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 220EVTX/B, 2800, 72, (2.83), 91, (3.58), J.W. Winco, M6 x 1.0, Steel, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Steel
Precision casting
Zinc plated
Blue passivated finish
Lever arm: Steel
Forged
Zinc plated
Blue passivated finish
Bearing pins and rivets: Steel
Hardened
Zinc plated
Blue passivated finish
All moving parts lubricated With special grease
Hand grip: High quality
Oil resistant red plastic
Type B: Clamping arm With slotted hole
Type F: Clamping arm With bushing
Stepped side washers or holding brackets included

Size Ref	Size 220
D1 Thread	M6 x 1.0
Description	Toggle Clamp
R1	77, (3.03)
Style	Vertical
L1 Type F	86, (3.39)
Bar Type	U-Bar
Series	GN 910.1
a	32, (1.26)
Type	Slotted Clamping Arm
Max Holding Capacity	2200 N
Brand	J.W. Winco
s	6, (.24)
Manufacturers Part Number	220EVTX/B
Material	Steel
R2	72, (2.83)
Piston Force @ 4Bar[N]	2800
M2	8, (.31)
Dimension L2	51, (2.01) in
H4	27, (1.06)
H3	16, (.63)
H1	152, (5.98)
M1	20, (.79)
Dimension H2	45, (1.77) in
B2	13, (.51)
Dimension L3	46, (1.81) in
L1 Type B	91, (3.58)
B1	36, (1.42)
Dimension D2	6.5, (.26) in
B3	6, (.24)
Dimension D3	6.5, (.26) in
B4	6, (.24)
M3	8, (.31)
Base Type	Vertical
