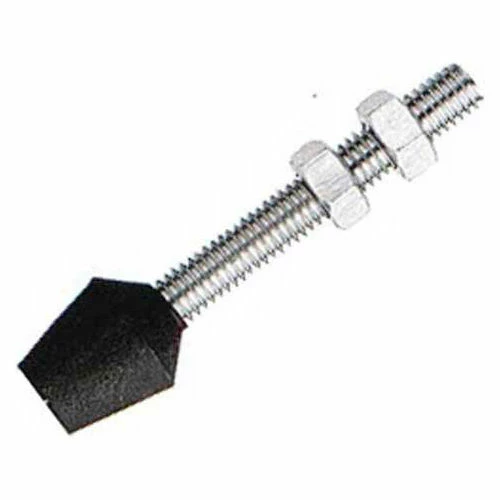

J.W. Winco, GN903-NI Toggle Clamp Screw Assembly, 8N20PCQ, M8 X 20, Stainless Steel

Original price was: $4.68.Current price is: $3.28.

SKU: J.W. Winco WBB1172100 Categories: Clamps, Hand Tools, Toggle Clamps Tags: Black Oxide, Clamping Toggle Screw Assembly, GN 903-NI, J.W. Winco, M8 x 1.25, Stainless Steel, Standard, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

J.W. Winco, GN903-NI Toggle Clamp Screw Assembly, 8N20PCQ, M8 X 20, Stainless Steel

Features:

Thrust screw: Steel version-Steel
Black oxide finish
Tensile strength 500 N/mm2
Stainless steel version-Stainless steel
European Standard No. 1.4305 (American Standard series 303)
Thrust pad: Technoopolymer plastic (Polyacetal POM)
Matte black
Temperature resistant to 80°C
Hex jam nuts: ISO 4032/DIN 936
Steel version-Steel
Zinc plated
Blue passivated finish
Stainless steel version-Stainless steel
European Standard No. 1.4305 (American Standard series 303)

Dimension L2	11, (.43) in
Dimension L3	6, (.24) in
Dimension L1	20 in
Dimension M	6.8, (.27)
A/F	4, (.16)
Dimension D1	32, (1.26) in
Type	Standard
Series	GN 903-NI
Finish	Black Oxide
Material	Stainless Steel
D2 Thread	M8 x 1.25
Description	Clamping Toggle Screw Assembly
Manufacturers Part Number	8N20PCQ
Brand	J.W. Winco
