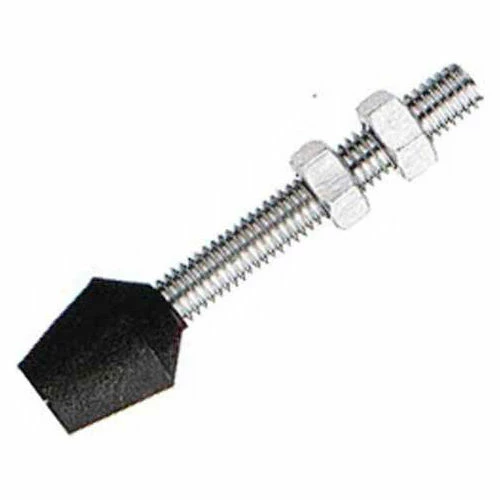

J.W. Winco, GN903-NI Toggle Clamp Screw Assembly, 10N34PCN, M10 X 34, Stainless Steel

Features:

Thrust screw: Steel version-Steel
Black oxide finish
Tensile strength 500 N/mm2
Stainless steel version-Stainless steel
European Standard No. 1.4305 (American Standard series 303)
Thrust pad: Technoopolymer plastic (Polyacetal POM)
Matte black
Temperature resistant to 80°C
Hex jam nuts: ISO 4032/DIN 936
Steel version-Steel
Zinc plated
Blue passivated finish
Stainless steel version-Stainless steel
European Standard No. 1.4305 (American Standard series 303)

Dimension L2	9.2, (.36) in
Dimension L3	3.8, (.15) in
Dimension L1	34 in
Dimension M	8.4, (.33)
A/F	5, (.20)
Dimension D1	18, (.71) in
Type	Standard
Series	GN 903-NI
Finish	Black Oxide
Material	Stainless Steel
D2 Thread	M10 x 1.5
Description	Clamping Toggle Screw Assembly
Manufacturers Part Number	10N34PCN
Brand	J.W. Winco
