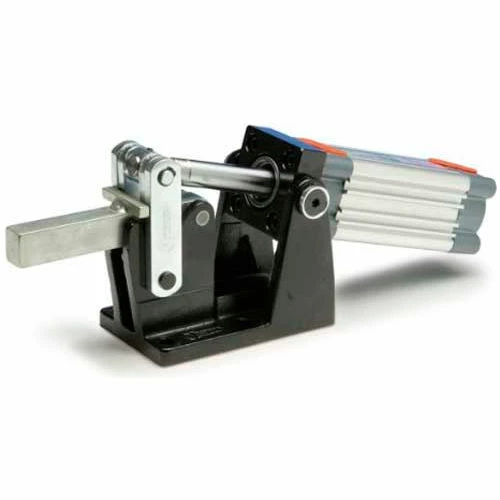

J.W. Winco GN890 Pneumatic Push-Pull Toggle Clamp, 890-360-SP-M, Size 360, Forged Steel

Original price was: $150.95.Current price is: $98.99.

SKU: J.W. Winco WBB1172469 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 21, (.73), 3100, 890-360-SP-M, 9, (.35), Forged Steel, J.W. Winco, M8 x 1.25, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Base: Forged steel
black powder coat paint finish
Base Housing: Case-hardened (sheet metal C10 steel)
Zinc plated
Blue passivated finish
Tapped connecting rod: St. 37 steel
Zinc plated
Yellow passivated
Bearing bolts are case-hardened
Double-action air cylinder
Maximum pressure 6 bar
All mobile sections lubricated With special grease

Size Ref	Size 360
D1 Thread	M8 x 1.25
Base Type	Horizontal
Description	Toggle Clamp
Style	Pneumatic
Series	GN 890
a	27.5, (1.08)
Type	Push-Pull
Max Holding Capacity	5600 N
Brand	J.W. Winco
s	9, (.35)
Manufacturers Part Number	890-360-SP-M
Material	Forged Steel
W Hub	21, (.73)
Piston Force @ 4Bar[N]	3100
Dimension T	15, (.59)
M3	36.5, (1.44)
Dimension H	70, (2.76)
Dimension D3	5.5, (.22) in
B1	53, (2.09)
M4	–
Dimension L3	32, (1.26) in
Dimension L2	113, (4.45) in
B2	90, (3.54)
Dimension D1	12, (.47) in
Dimension D4	G 1/8 in
M1	33.5, (1.32)
Dimension L1	260, (10.24) in
M2	30, (1.18)
Air Tube ID	4, (.16)
