- Base: Case-hardened sheet metal (steel C10)
- Zinc plated
- Blue passivated finish
- Hardened bearing bolt
- Bushings and air cylinder bearing bolts case-hardened
- Double-action air cylinder
- Maximum pressure 6 bar
- All mobile sections lubricated With special grease
- Type APV3: U-bar version With two flanged washers
- Type EPV3: Solid bar version With clasp

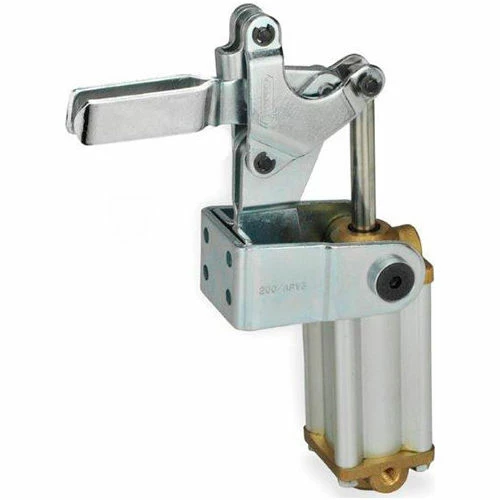

J.W. Winco GN862 U-Bar Pneumatic Toggle Clamp, 862-330-APV-M, Size 300, Sheet Metal
$251.95 Original price was: $251.95.$96.99Current price is: $96.99.
- Shop with Confidence
- Safe Payments, the Smart Choice
- Shop with Zero Worries
- Get the quality you deserve, for less.

| Size Ref | Size 300 |
|---|---|
| Type | U-Bar |
| D1 Thread | M10 x 1.5 |
| Material | Base: Hardened Sheet Metal |
| Manufacturers Part Number | 862-330-APV-M |
| s | 8, (.31) |
| Brand | J.W. Winco |
| Max Holding Capacity | 2700 N |
| a~ | 42, (1.65) |
| Piston Force @ 4Bar[N] | 1200 |
| Series | GN 862 |
| Bar Type | U-Bar |
| Style | Pneumatic |
| I3 Max | 104, (4.09) |
| Description | Toggle Clamp |
| Base Type | Vertical |
| D3 Thread | G 1/4 |
| R | 121, (4.76) |
| M3 | 28, (1.10) |
| M5 | 30, (1.18) |
| M1 | 30, (1.18) |
| M2 | 16.5, (.65) |
| Dimension L1 | 188, (7.40) in |
| H4 | 41, (1.61) |
| B5 | 10.3, (.41) |
| H3 | 20, (.79) |
| H1 | 258, (10.16) |
| Dimension H2 | 108, (4.25) in |
| B4 | 51, (2.01) |
| Dimension E | 51, (2.01) |
| B2 | 53, (2.09) |
| Dimension L2 | 74, (2.91) in |
| M4 | 13, (.51) |
| B1 | 68, (2.68) |
| Dimension D2 | 8.5, (.33) in |
| B3 | 60, (2.36) |
| Air Tube ID | 6, (.24) |
