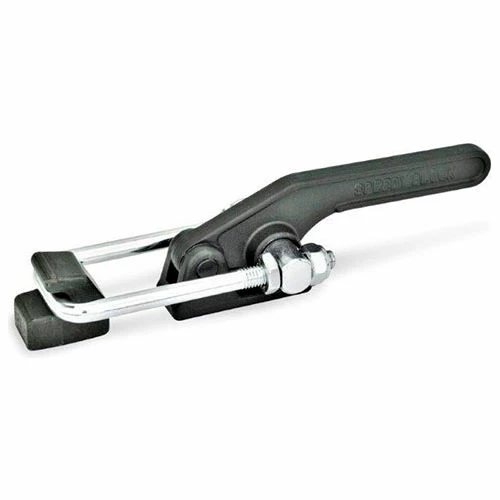

J.W. Winco, GN852 Latch-Type Toggle Clamp, 852-4000-T2S, Welding W/ Pull Latch, Forged Steel

Original price was: $83.95.Current price is: $58.77.

SKU: J.W. Winco WBB1172456 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 112, (4.41), 12, (.47), 18, (.71), 852-4000-T2S, Forged Steel, J.W. Winco, M12 x 1.75, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

J.W. Winco, GN852 Latch-Type Toggle Clamp, 852-4000-T2S, Welding W/ Pull Latch, Forged Steel

Features:

Base and fixed catch: St. 60 steel
Forged
Chemically blackened Clamping lever: C 40
Forged steel Black powder coat paint finish Latch bolt and bearing bolt: St. 37 steel
Zinc plated
Blue passivated finish All mobile sections lubricated With special grease Type T2 – With mounting holes
With pulling latch
With latch bracket Type T – With mounting holes
Without pulling latch
With latch bracket Type T2S – For welding
With pulling latch
With latch bracket Type TS – For welding
Without pulling latch

B6	33, (1.31)
Manufacturers Part Number	852-4000-T2S
M3	57, (2.24)
R~	112, (4.41)
s2	12, (.47)
D1 Thread	M12 x 1.75
W2 Adjustment Length	18, (.71)
Material	Forged Steel
s1	9, (.35)
Dimension D3	16, (.63) in
W1 Hub	75, (2.95)
Brand	J.W. Winco
Max Holding Capacity	28000 N
Type	W/ Pull Latch
Series	GN 852
Style	Latch
Description	Toggle Clamp
B4	60, (2.36)
B3	55, (2.17)
B7	50, (1.97)
H1	65, (2.56)
A2	27, (1.06)
Dimension T	2, (.08)
M5	35, (1.38)
M2	14, (.55)
A1	28, (1.10)
B5	80, (3.15)
M1	57, (2.24)
Dimension D2	10.5, (.41) in
Dimension H2	42, (1.65) in
B2	80, (3.15)
Dimension l1~	272, (10.71)
Dimension L2	50, (1.97) in
Dimension L3	152, (5.98) in
M4	12.5, (.49)
B1	85, (3.35)
Base Type	Welding
