Sale!

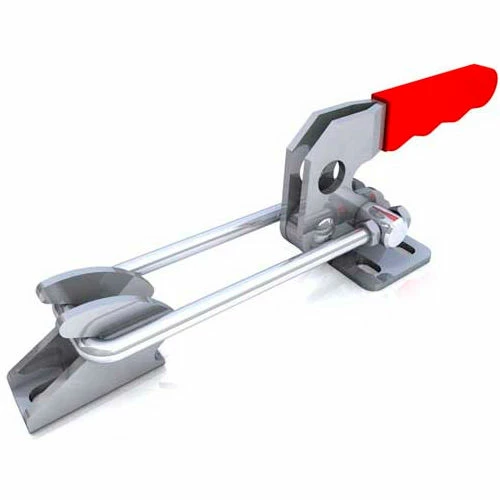

J.W. Winco GN851 Latch-Type Toggle Clamp, 851-700-T2, Size 700, Steel

Original price was: $35.95.Current price is: $25.17.

SKU: J.W. Winco WBB1172453 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 20, (.79), 54, (2.13), 700EVU7/T2, 74, (2.91), J.W. Winco, M8 x 1.25, Steel, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Case-hardened steel (C10)
Zinc plated
Blue passivated finish Handle arm is St. 37 steel
Zinc plated
Blue passivated finish All mobile sections lubricated With special grease Handle grip: High quality
Oil resistant red plastic Supplied complete With fixed catch

Size Ref	Size 700
R~	74, (2.91)
Description	Toggle Clamp
Style	Latch
Series	GN 851
a	24, (.94)
Type	Standard
Max Holding Capacity	7000 N
Brand	J.W. Winco
s	3.5, (.14)
W1 Hub	54, (2.13)
Manufacturers Part Number	700EVU7/T2
Material	Steel
W2 Adjustment Length	20, (.79)
D1 Thread	M8 x 1.25
M3	41.5, (1.63)
M5	19, (.75)
B4	38, (1.58)
L2 Min	27, (1.06) in
B3	39, (1.54)
Dimension D2	8.5, (.33) in
B1	60, (2.36)
M4	9.5, (.37)
Dimension l1~	220, (8.66)
B2	54, (2.13)
Dimension H2	36, (1.42) in
M1	38, (1.50)
H1	42, (1.65)
B5	27, (1.06)
M2	9.5, (.37)
Base Type	Horizontal
