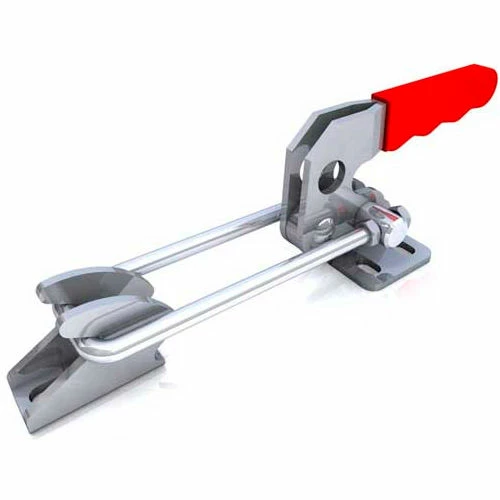

J.W. Winco GN851 Latch Type Toggle Clamp, 851-320-T2, Size 320, Steel

Original price was: $18.75.Current price is: $13.13.

SKU: J.W. Winco WBB1172437 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 320EVU7/T2, 38, (1.50), 57, (2.25), 9, (.35), J.W. Winco, M6 x 1.0, Steel, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Case-hardened steel (C10)
Zinc plated
Blue passivated finish Handle arm is St. 37 steel
Zinc plated
Blue passivated finish All mobile sections lubricated With special grease Handle grip: High quality
Oil resistant red plastic Supplied complete With fixed catch

Size Ref	Size 320
R~	57, (2.25)
Description	Toggle Clamp
Style	Latch
Series	GN 851
a	16, (.63)
Type	Standard
Max Holding Capacity	3200 N
Brand	J.W. Winco
s	3, (.12)
W1 Hub	38, (1.50)
Manufacturers Part Number	320EVU7/T2
Material	Steel
W2 Adjustment Length	9, (.35)
D1 Thread	M6 x 1.0
M3	19, (.75)
M5	14, (.55)
B4	28, (1.10)
L2 Min	19.5, (.77) in
B3	32, (1.26)
Dimension D2	6.5, (.26) in
B1	40, (1.57)
M4	7, (.28)
Dimension l1~	152, (5.98)
B2	44, (1.69)
Dimension H2	25, (.98) in
M1	32, (1.26)
H1	30, (1.18)
B5	22, (.87)
M2	10.5, (.41)
Base Type	Horizontal
