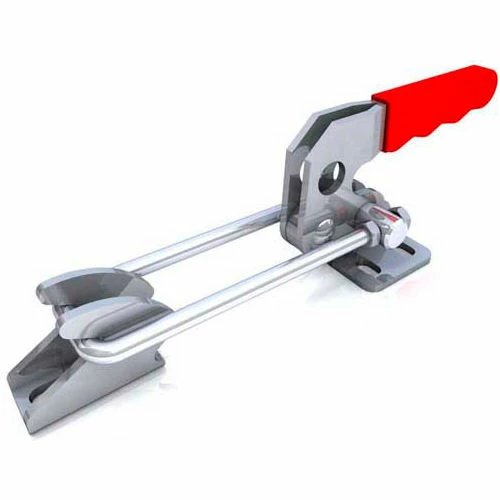

J.W. Winco, GN851.1 Vertical Hook-Type Toggle Clamp, 851.1-160-T3, W/ Pull Latch, Sheet Metal
Original price was: $14.00.$9.80Current price is: $9.80.
- Shop with Confidence
- Safe Payments, the Smart Choice
- Shop with Zero Worries
- Get the quality you deserve, for less.
Features:
- Toggle clamp: Case-hardened sheet metal (steel C10) Zinc plated
- Blue passivated finish Zinc plated steel rivets in case-hardened bushings have bearing spots greased Open twin-arm and horizontal base Hand grip: High quality
- Oil resistant red plastic Type T3 – With pulling latch
- With latch bracket Type T – Without pulling latch
| M5 | 14.3, (.56) |
|---|---|
| D1 Thread | M4 x 0.75 |
| Description | Toggle Clamp |
| Style | Hook |
| Series | GN 851.1 |
| a | 5, (.20) |
| Type | Vertical W/ Pull Latch |
| Max Holding Capacity | 1600 N |
| Brand | J.W. Winco |
| s | 2, (.08) |
| W1 Hub | 34.5, (1.36) |
| Manufacturers Part Number | 851.1-160-T3 |
| Material | Hardened Sheet Metal Zinc Plated |
| W2 Adjustment Length | 10, (.39) |
| R~ | 50, (1.97) |
| M2 | 6.5, (.26) |
| M3 | 13, (.51) |
| B4 | 25.5, (1.00) |
| L2 Min | 4.5, (.18) in |
| B3 | 21, (.83) |
| Dimension D2 | 4.3, (.17) in |
| B1 | 26, (1.02) |
| M4 | 6.5, (.26) |
| Dimension l1~ | 68, (2.68) |
| B2 | 35, (1.38) |
| Dimension H2 | 10, (.39) in |
| M1 | 22, (.87) |
| H1 | 36, (1.42) |
| B5 | 14, (.55) |
| Base Type | Horizontal |
