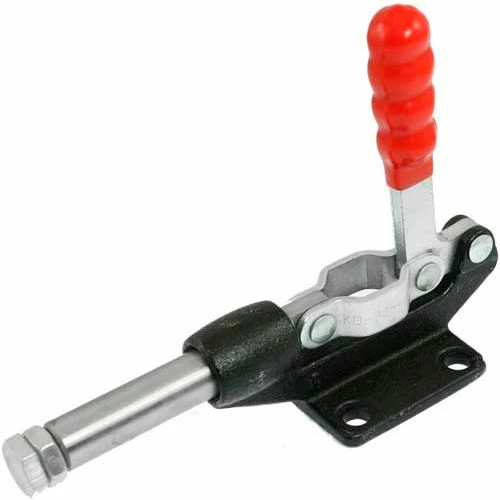

J.W. Winco GN844 Heavy Duty Push-Pull Toggle Clamp, 844-160-ASS, Size 160, Steel

Original price was: $48.95.Current price is: $34.27.

SKU: J.W. Winco WBB1172018 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 10, (.39), 160EVU4/ASS, 30, (1.18), J.W. Winco, M6 x 1.0, Steel, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Lever arm case-hardened sheet metal (steel C10)
Zinc plated
Blue passivated finish Rod is St. 37 steel
Zinc plated
Blue passivated finish Base is brass
black lacquered finish All mobile sections lubricated With special grease Hand grip: High quality
Oil resistant red plastic Type ASD: Compression occurs With counter-clockwise turn Type ASS: Compression occurs With clockwise turn

Size Ref	Size 160
Material	Steel
Description	Toggle Clamp
Style	Push-Pull
Series	GN 844
a	15.5, (.61)
Type	Heavy Duty
Max Holding Capacity	1300 N
Brand	J.W. Winco
s	10, (.39)
Manufacturers Part Number	160EVU4/ASS
D2 Thread	M6 x 1.0
W Hub	30, (1.18)
Dimension T	12, (.47)
B	25, (.98) in
M3	11, (.43)
Dimension D3	5.5, (.22) in
Dimension L3	32, (1.26) in
Dimension L2	107, (4.21) in
Dimension D1	11, (.43) in
Dimension H2	46, (1.81) in
M1	36.5, (1.44)
H1	86, (3.39)
Dimension L1	117, (4.61) in
M2	33.5, (1.32)
Base Type	Horizontal
