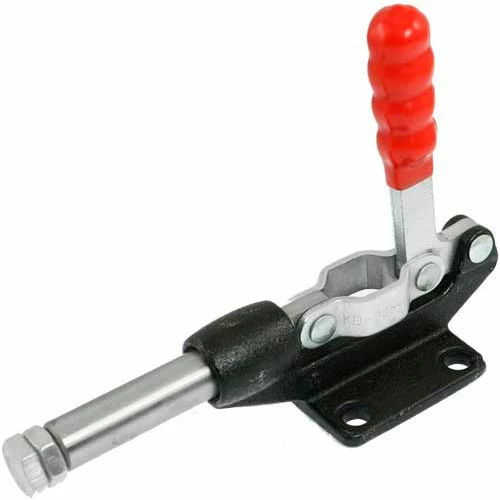

J.W. Winco GN842 Heavy Duty Push-Pull Toggle Clamp, 842-550-AS, Size 550, Steel

Original price was: $56.95.Current price is: $39.87.

SKU: J.W. Winco WBB1172536 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 42, (1.65), 550EVU2/AS, 6.5, (.26), J.W. Winco, M8 x 1.25, Steel, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Base
sizes 70 and 160: nickel plated brass Base
sizes 350-3000: black powder coat painted brass Case-hardened sheet metal (C10 steel)
Zinc plated
Blue passivated finish Rod is St. 37 steel
copper plated Bearing bolt is case-hardened All mobile sections lubricated With special grease Hand grip: High quality
Oil resistant red plastic

Size Ref	Size 550
W Hub	42, (1.65)
Description	Toggle Clamp
Style	Push-Pull
Series	GN 842
a	18, (.71)
Type	Heavy Duty
Max Holding Capacity	8000 N
Brand	J.W. Winco
s	6.5, (.26)
Manufacturers Part Number	550EVU2/AS
D2 Tapped	M8 x 1.25
Material	Steel
M3	35, (1.38)
Dimension T	16, (.63)
Dimension D3	7, (.28) in
B1	122, (4.80)
H2	31, (1.22)
M4	41, (1.61)
Dimension L3	42, (1.65) in
Dimension L2	154, (6.06) in
B2	55, (2.17)
Dimension D1	14, (.55) in
M1	41, (1.61)
H1	77, (3.03)
Dimension L1	164, (6.46) in
M2	15, (.59)
Base Type	Horizontal
