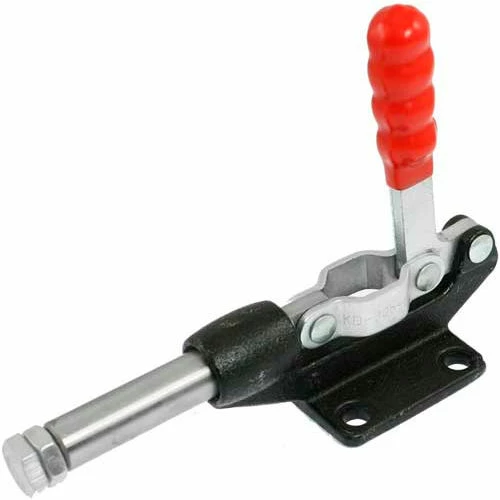

J.W. Winco GN841 Push-Pull Toggle Clamp, 841-120-AS, Size 120, Sheet Metal

Original price was: $31.95.Current price is: $22.37.

SKU: J.W. Winco WBB1172596 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 120EVU1/AS, 20, (.79), 3600 N, Hardened Sheet Metal, J.W. Winco, M6 x 1.0, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Case-hardened sheet metal (steel C10) Zinc plated
Blue passivated finish Rod is St. 37 steel
Zinc plated
Blue passivated finish Drive socket is brass
Zinc plated
Blue passivated finish All mobile sections lubricated With special grease Hand grip: High quality
Oil resistant red plastic

Size Ref	Size 120
W Hub	20, (.79)
Description	Toggle Clamp
Style	Push-Pull
Series	GN 841
a	17, (.67)
SW	24, (.94)
Type	Standard
Max Holding Capacity	3600 N
Brand	J.W. Winco
Manufacturers Part Number	120EVU1/AS
D2 Tapped	M6 x 1.0
Material	Hardened Sheet Metal
Dimension L4	30, (1.18) in
Dimension T	12, (.47)
B	48, (1.89) in
M3	17, (.67)
Dimension D3	5.5, (.22) in
Dimension L3	40, (1.57) in
Dimension L2	121, (4.76) in
Dimension D1	12, (.47) in
Dimension H2	31, (1.22) in
M1	34, (1.34)
H1	113, (4.45)
Dimension L1	130, (5.12) in
M2	30, (1.18)
Base Type	None
