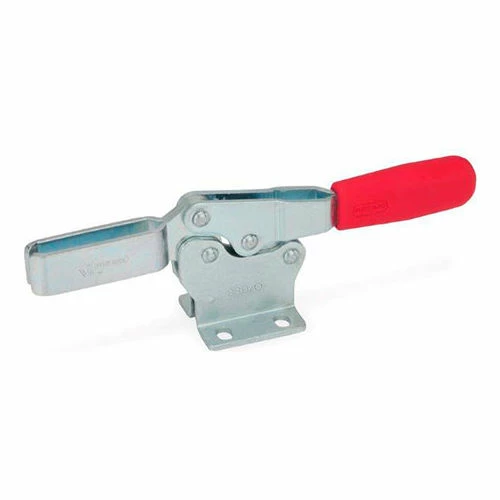

J.W. Winco GN820 U-Bar Horizontal Acting Toggle Clamp, 820-25-M, Size 25, Sheet Metal

Original price was: $9.00.Current price is: $6.30.

SKU: J.W. Winco WBB1172006 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 1.2, (.05), 24.5, (.96), 25EVT7/M, Hardened Sheet Metal, J.W. Winco, M4 x .7, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Case-hardened sheet metal (steel C10)
Zinc plated
Blue passivated finish Zinc-plated steel rivets in case-hardened bushings have bearing spots greased Hand grip: High quality
Oil resistant red plastic Type M: U-bar version With two flanged washers Type O: Solid bar version With clasp

Size Ref	Size 25
R	24.5, (.96)
Description	Toggle Clamp
Style	Horizontal
Bar Type	U-Bar
Series	GN 820
a~	10, (.39)
Type	U-Bar
Max Holding Capacity	400 N
Brand	J.W. Winco
s1	1.2, (.05)
Manufacturers Part Number	25EVT7/M
Material	Hardened Sheet Metal
D1 Thread	M4 x .7
M3	4.5, (.18)
M2	16, (.63)
B3	4.5, (.18)
Dimension D2	4.3, (.17) in
B1	24, (.94)
Dimension L3	20, (.79) in
Dimension L2	43, (1.69) in
B2	24.5, (.96)
Dimension H2	12, (.47) in
M1	15, (.59)
H1	22, (.91)
H3	7, (.28)
H4	15, (.59)
Dimension L1	69, (2.72) in
Base Type	Horizontal
