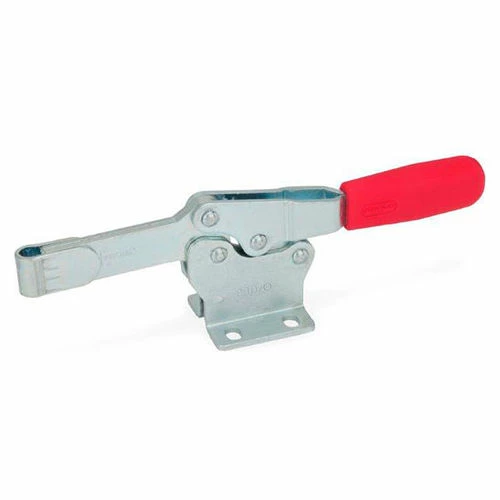

J.W. Winco GN820 Solid Bar Horizontal Toggle Clamp, 820-75-O, Size 75, Sheet Metal

Original price was: $13.50.Current price is: $9.45.

SKU: J.W. Winco WBB1171983 Categories: Clamps, Hand Tools, Toggle Clamps Tags: 2, (.08), 4, (.16), 43, (1.69), 75EVT7/O, Hardened Sheet Metal, J.W. Winco, M5 x .8, Tools & Instruments

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

Features:

Toggle clamp: Case-hardened sheet metal (steel C10)
Zinc plated
Blue passivated finish Zinc-plated steel rivets in case-hardened bushings have bearing spots greased Hand grip: High quality
Oil resistant red plastic Type M: U-bar version With two flanged washers Type O: Solid bar version With clasp

Size Ref	Size 75
R	43, (1.69)
Description	Toggle Clamp
I4 Max	49.5, (1.95)
Style	Horizontal
Bar Type	Solid Bar
Series	GN 820
a~	20, (.79)
Type	Solid Bar
Max Holding Capacity	900 N
Brand	J.W. Winco
s1	2, (.08)
Manufacturers Part Number	75EVT7/O
Material	Hardened Sheet Metal
D1 Thread	M5 x .8
s2	4, (.16)
M2	17, (.67)
M3	7.2, (.31)
B3	5.5, (.22)
Dimension D2	4.5, (.18) in
B1	28, (1.10)
Dimension L3	40, (1.57) in
Dimension L2	67, (2.64) in
B2	26, (1.02)
Dimension H2	20, (.79) in
M1	13.5, (.53)
H1	38, (1.50)
H3	11, (.43)
H4	22.5, (.89)
Dimension L1	118, (4.65) in
Base Type	Horizontal
