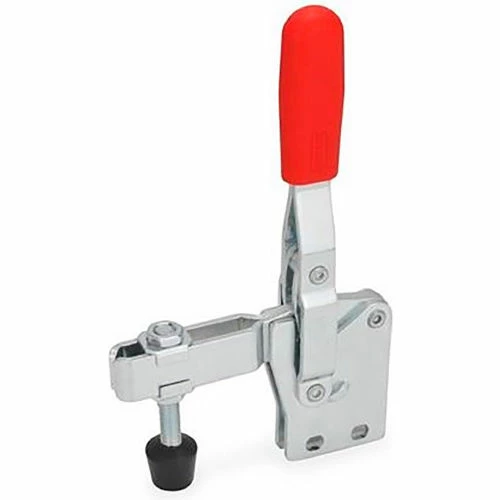

J.W. Winco 810.1 Vertical Acting Toggle Clamp with Vertical Mounting Base, Steel, Size 330

Original price was: $25.95.Current price is: $18.17.

SKU: J.W. Winco WBB2958405 Categories: Clamps, Hand Tools, Toggle Clamps Tags: GN810.1, J.W. Winco, Silver, Steel, Tools & Instruments, U-Bar, Vertical, Zinc plated

Shop with Confidence
Safe Payments, the Smart Choice
Shop with Zero Worries
Get the quality you deserve, for less.

GN 810.1 vertical acting toggle clamps work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Includes spindle with neoprene rubber tip assembly. 2400 Newton Holding Capacity.

B2	0.55
Type	U-Bar
Max Holding Capacity	2400 N
Base Type	Vertical
Manufacturers Part Number	810.1-330-BC
Material	Steel
Finish	Zinc plated
Style	Vertical
Series	GN810.1
Color Family	Silver
Dimension D1	M10 in
Dimension L2	2.6 in
M1	1.13
H1	8.58
Dimension L1	5.08 in
M2	1.27
B3	0.55
B1	1.97
Size	330
H2	2.6
Brand	J.W. Winco
